EL-UHF-RMT01 Menggunakan Python §

HEADER: bytes = b'\xBB'
END: bytes = b'\x7E'
CMD_INVENTORY_SINGLE: bytes = b'\x22'
CMD_INVENTORY_MULTI_START: bytes = b'\x27'
CMD_INVENTORY_MULTI_STOP: bytes = b'\x28'
CMD_SET_BAUD_RATE: bytes = b'\x11'
CMD_GET_POWER: bytes = b'\xB7'
CMD_SET_POWER: bytes = b'\xB6'
CMD_SAVE_CONFIG: bytes = b'\x09'
CMD_SET_SELECT: bytes = b'\x0C'
CMD_GET_SELECT: bytes = b'\x0B'
CMD_SET_SELECT_MODE: bytes = b'\x12'
CMD_READ_MEMORY: bytes = b'\x39'
CMD_WRITE_MEMORY: bytes = b'\x49'


class Command:
    def __init__(self, command: bytes, data: bytes | int | None = None):
        self.command: bytes = command
        self.data: bytes | int | None = data
        if isinstance(data, int):
            self.data = bytearray([data])
        if data is None:
            self.data = bytearray()

    def serialize(self) -> bytes:
        # Calculate CRC
        crc_sum: int = sum((bytearray([0x00]) + self.command
                            + len(self.data).to_bytes(2, byteorder="big") + self.data))
        crc: bytes = (crc_sum & 0xFF).to_bytes(1, byteorder="big")
        serialize: bytes = (HEADER + b'\x00' + self.command
                            + len(self.data).to_bytes(2, byteorder="big") + self.data + crc + END)
        return serialize

from typing import Optional


MEMORY_BANKS: dict[int, str] = {
    0: "Reserved",
    1: "EPC",
    2: "TID",
    3: "User"
}


def hex_readable(data: bytes | int, bytes_separator: str = " ") -> str:
    if isinstance(data, int):
        return "{:02X}".format(data)
    return bytes_separator.join("{:02X}".format(x) for x in data)


class Response:
    def __init__(self, response_bytes: bytes):
        self.response_bytes: bytes = response_bytes
        self.header: bytes = int.to_bytes(response_bytes[0], byteorder="big")
        self.frame_type: bytes = int.to_bytes(response_bytes[1], byteorder="big")
        self.command: bytes = int.to_bytes(response_bytes[2], byteorder="big")
        self.data_length: int = int.from_bytes(response_bytes[3:5], "big")
        self.data: bytes = response_bytes[5:-2]
        self.checksum: bytes = int.to_bytes(response_bytes[-2], byteorder="big")
        self.end: bytes = int.to_bytes(response_bytes[-1], byteorder="big")

    def __str__(self) -> str:
        return_value = ''
        value = '>>> START RESPONSE ================================'
        return_value = f'{return_value}\n{value}'
        value = f'RESPONSE       >> {hex_readable(self.response_bytes)}'  # Response
        return_value = f'{return_value}\n{value}'
        value = f'HEADER         >> {hex_readable(self.header)}'  # Header
        return_value = f'{return_value}\n{value}'
        value = f'TYPE           >> {hex_readable(self.frame_type)}'  # Type
        return_value = f'{return_value}\n{value}'
        value = f'COMMAND        >> {hex_readable(self.command)}'  # Command
        return_value = f'{return_value}\n{value}'
        if self.data:
            value = f'DATA           >> {hex_readable(self.data)}'  # Data
            return_value = f'{return_value}\n{value}'
        value = f'CHECKSUM (CRC) >> {hex_readable(self.checksum)}'  # Checksum (CRC)
        return_value = f'{return_value}\n{value}'
        value = f'END            >> {hex_readable(self.end)}'  # End
        return_value = f'{return_value}\n{value}'
        value = '>>> END RESPONSE   ================================'
        return_value = f'{return_value}\n{value}'
        return return_value.strip()


class SelectParameter:
    def __init__(self,
                 memory_bank: int,
                 mask: bytes,
                 target: int = 0,
                 action: int = 0,
                 start_address: int = 32,
                 truncate: bool = False,
                 mask_bit_length: Optional[int] = None
                 ) -> None:
        """
        Select parameter.

        Args:
            memory_bank (int): 0=Reserved, 1=EPC, 2=TID, 3=User.
            mask (bytes): Mask data
            target (int): Target session (0-7). Default 0 (S0).
            action (int): Action flag (0-7). Default 0 (000).
            start_address (int): Start address. Default 32 (0x20).
            truncate (bool): Truncate, default: False.
            mask_bit_length (Optional[int]): Mask length. If None, get from len(mask) * 8.
        """
        self.memory_bank: int = memory_bank
        self.mask: bytes = mask
        self.target: int = target
        self.action: int = action
        self.start_address: int = start_address
        self.truncate: bool = truncate

        if mask_bit_length is not None:
            self.mask_bit_length: int = mask_bit_length
        else:
            self.mask_bit_length: int = len(mask) * 8

    @property
    def memory_bank_label(self) -> str:
        return MEMORY_BANKS.get(self.memory_bank, "Unknown")

    @classmethod
    def parse(cls, data: bytes) -> 'SelectParameter':
        if len(data) < 7:
            raise ValueError(f"Data too short: {len(data)} bytes (min 7 required)")

        # 2. Parse Byte 0 (SelParam)
        b0: int = data[0]
        target: int = (b0 >> 5) & 0b111
        action: int = (b0 >> 2) & 0b111
        membank: int = b0 & 0b11

        # 3. Parse Pointer (Byte 1-4, Big Endian)
        start_address: int = int.from_bytes(data[1:5], byteorder='big')

        # 4. Parse Length & Truncate
        mask_len_bits: int = data[5]
        is_truncate: bool = (data[6] != 0)

        # 5. Parse Mask
        mask_byte_count: int = (mask_len_bits + 7) // 8
        mask_bytes: bytes = data[7: 7 + mask_byte_count]

        return cls(
            memory_bank=membank,
            mask=mask_bytes,
            target=target,
            action=action,
            start_address=start_address,
            truncate=is_truncate,
            mask_bit_length=mask_len_bits
        )

    def serialize(self) -> bytearray:
        data: bytearray = bytearray()

        # 1. Select parameter
        sel_params: int = (self.target << 5) | (self.action << 2) | self.memory_bank
        data.append(sel_params)

        # 2. Start address / pointer (4 bytes)
        data.extend(self.start_address.to_bytes(4, byteorder='big'))

        # 3. Mask Length (Bits)
        data.append(self.mask_bit_length)

        # 4. Truncate
        data.append(0x80 if self.truncate else 0x00)

        # 5. Mask Data
        data.extend(self.mask)

        return data

    def __repr__(self) -> str:
        return (
            f"SelectParameter(\n"
            f"  [Byte 0] Memory bank: {self.memory_bank} ({self.memory_bank_label}), "
            f"Target: {self.target}, Action: {self.action}\n"
            f"  [Byte 1-4] Start address (bit): {self.start_address} (0x{self.start_address:08X})\n"
            f"  [Byte 5] Mask length: {self.mask_bit_length} bits\n"
            f"  [Byte 6] Truncate: {self.truncate}\n"
            f"  [Byte 7+] Mask: {hex_readable(self.mask)}\n"
            f")"
        )


class ReadMemoryResponse(Response):
    def __init__(self, response_bytes: bytes) -> None:
        super().__init__(response_bytes)

        if not self.data:
            raise RuntimeError("No data")

        # If error
        if int.from_bytes(self.command) == 0xFF:
            if self.data[0] == 0x09:
                raise RuntimeError("The tag is not in range.")
            if self.data[0] == 0x16:
                raise RuntimeError("Wrong access password.")
            if self.data[0] == 0xA3:
                raise RuntimeError("The Tag memory location does not exist, is too small, "
                                   "or the tag does not support the specified EPC length.")

        pc_epc_length: int = self.data[0]
        self.pc: bytes = self.data[1:3]
        self.epc: bytes = self.data[3:pc_epc_length+1]
        self.read_data: bytes = self.data[pc_epc_length+1:]

    def __str__(self) -> str:
        return (
            f"Read Memory(\n"
            f" - PC  : {hex_readable(self.pc)}\n"
            f" - EPC : {hex_readable(self.epc)}\n"
            f" - Data: {hex_readable(self.read_data)}\n"
            f")"
        )


class WriteMemoryResponse(Response):
    def __init__(self, response_bytes: bytes) -> None:
        super().__init__(response_bytes)

        if not self.data:
            raise RuntimeError("No data")

        # If error
        if int.from_bytes(self.command) == 0xFF:
            if self.data[0] == 0x10:
                raise RuntimeError("The tag is not in range.")
            if self.data[0] == 0x16:
                raise RuntimeError("Wrong access password.")
            if self.data[0] == 0xB3:
                raise RuntimeError("The Tag memory location does not exist, is too small, "
                                   "or the tag does not support the specified EPC length.")

        pc_epc_length: int = self.data[0]
        self.pc: bytes = self.data[1:3]
        self.epc: bytes = self.data[3:pc_epc_length+1]
        self.result: int = self.data[pc_epc_length+1]

        if self.result != 0x00:
            raise RuntimeError("The result is not 0x00 (write failed).")

    def __str__(self) -> str:
        return (
            f"Write Memory(\n"
            f" - PC    : {hex_readable(self.pc)}\n"
            f" - EPC   : {hex_readable(self.epc)}\n"
            f" - Result: {'Write successfully.' if self.result == 0x00 else 'Write failed.' }\n"
            f")"
        )

from typing import Iterator
from command import *
from response import *
import serial


class Reader:
    def __init__(self, serial_port: str, baud_rate: int) -> None:
        self.serial_port: str = serial_port
        self.baud_rate: int = baud_rate
        self.serial = serial.Serial(serial_port, baud_rate,
                                    timeout=0.5, write_timeout=0.5)

    def close(self) -> None:
        self.serial.close()

    def __send_request(self, command: Command) -> None:
        self.serial.write(command.serialize())

    def __get_response(self) -> bytes:
        header: bytes = self.serial.read(1)
        assert header == HEADER  # Must equal to default header (0xBB)
        header_frame: bytes = self.serial.read(4)
        data_length: int = int.from_bytes(header_frame[-2:], "big")
        data: bytes = self.serial.read(data_length)
        crc_end: bytes = self.serial.read(2)
        end: bytes = int.to_bytes(crc_end[-1], byteorder="big")
        assert end == END
        complete_frame: bytes = header + header_frame + data + crc_end
        return complete_frame

    def inventory_single(self) -> bytes | None:
        """
        0x22 Single Inventory
        :return: Data or none (no tag)
        """
        command: Command = Command(CMD_INVENTORY_SINGLE)
        self.__send_request(command)
        response: Response = Response(self.__get_response())
        if response.frame_type == b'\x01' and response.data == b'\x15':
            return
        assert response.frame_type == b'\x02'  # Frame type ➜ 0x01: Response from the Interrogator to the Host Computer
        return response.data

    def inventory_multiple_start(self, count: int) -> Iterator[bytes]:
        """
        0x27 Multiple Inventory
        :param count: 0~65535
        :return: yield data
        """
        assert 0 <= count <= 65535, "Value must be between 0 and 65535, inclusive."
        data: bytes = b'\x22' + count.to_bytes(2, byteorder="big")
        command: Command = Command(CMD_INVENTORY_MULTI_START, data=data)
        self.__send_request(command)
        for _ in range(count):
            response: Response = Response(self.__get_response())
            if response.frame_type == b'\x01' and response.data == b'\x15':
                continue
            assert response.frame_type == b'\x02'
            yield response.data

    def inventory_multiple_stop(self) -> None:
        """
        0x28 Multiple Inventory
        :return:
        """
        command: Command = Command(CMD_INVENTORY_MULTI_STOP)
        self.__send_request(command)
        self.__get_response()

    def save_config(self, violate: bool) -> Response:
        data: int = 0x00 if violate else 0x01
        command: Command = Command(CMD_SAVE_CONFIG, data=data)
        self.__send_request(command)
        return Response(self.__get_response())

    def get_power(self) -> int:
        command: Command = Command(CMD_GET_POWER)
        self.__send_request(command)
        response: Response = Response(self.__get_response())
        return int(int.from_bytes(response.data, byteorder='big') / 100)

    def set_power(self, power: int) -> Response:
        power: int = power * 100
        data: bytes = power.to_bytes(2, byteorder="big")
        command: Command = Command(CMD_SET_POWER, data=data)
        self.__send_request(command)
        return Response(self.__get_response())

    def set_baud_rate(self, baud_rate: int) -> None:
        baud_rate: int = int(baud_rate / 100)
        data: bytes = baud_rate.to_bytes(2, byteorder="big")
        command: Command = Command(CMD_SET_BAUD_RATE, data=data)
        self.__send_request(command)

    def get_select(self) -> SelectParameter:
        command: Command = Command(CMD_GET_SELECT)
        self.__send_request(command)

        response: Response = Response(self.__get_response())
        return SelectParameter.parse(response.data)

    def set_select(self, parameter: SelectParameter) -> Response:
        payload_data: bytes = parameter.serialize()
        command: Command = Command(CMD_SET_SELECT, data=payload_data)

        self.__send_request(command)

        return Response(self.__get_response())

    def read_tag_memory(
            self,
            memory_bank: int,
            start_address: int, # In word
            length: int, # In word
            access_password: bytes = bytes(4),
    ) -> ReadMemoryResponse:
        payload_data: bytearray = bytearray()
        payload_data.extend(access_password)
        payload_data.append(memory_bank)
        payload_data.extend(start_address.to_bytes(2, byteorder="big"))
        payload_data.extend(length.to_bytes(2, byteorder="big"))
        command: Command = Command(CMD_READ_MEMORY, data=payload_data)
        self.__send_request(command)

        return ReadMemoryResponse(self.__get_response())

    def write_tag_memory(
            self,
            memory_bank: int,
            start_address: int, # In word
            data: bytes,
            access_password: bytes = bytes(4),
    ) -> WriteMemoryResponse:
        payload_data: bytearray = bytearray()
        payload_data.extend(access_password)
        payload_data.append(memory_bank)
        payload_data.extend(start_address.to_bytes(2, byteorder="big"))
        payload_data.extend(int(len(data) / 2).to_bytes(2, byteorder="big"))
        payload_data.extend(data)
        command: Command = Command(CMD_WRITE_MEMORY, data=payload_data)
        self.__send_request(command)

        return WriteMemoryResponse(self.__get_response())

from time import sleep
from typing import Iterator

from response import hex_readable, Response, SelectParameter, ReadMemoryResponse, WriteMemoryResponse
from reader import Reader

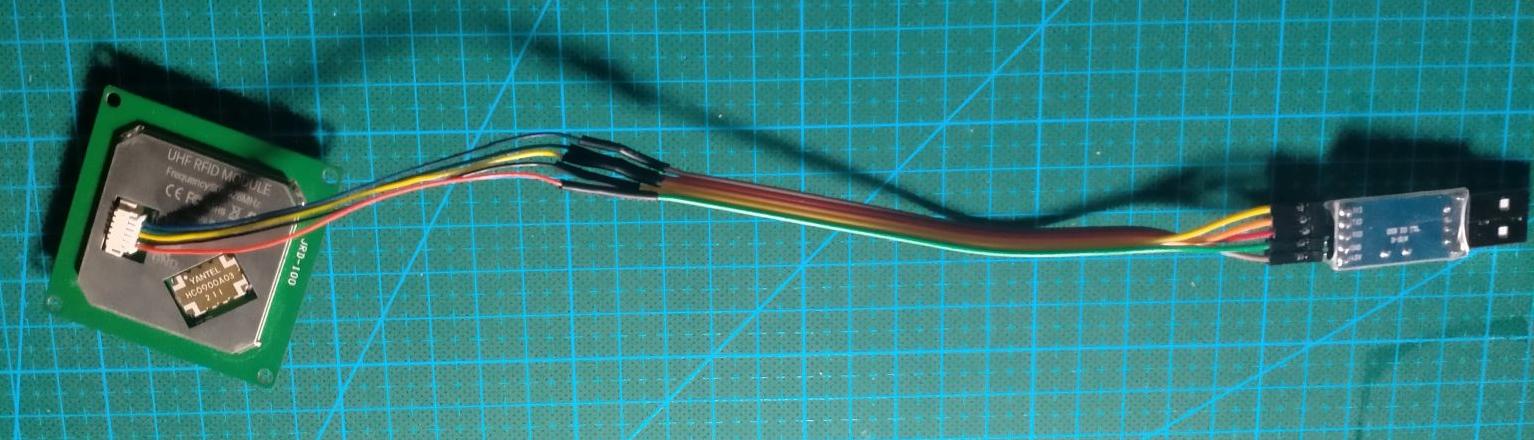

# Windows: Replace '/dev/ttyUSB0' to 'COM1' (check Device Manager)
reader = Reader('/dev/ttyUSB0', 115200)

# # 1. Inventory - Single
tag: bytes | None = reader.inventory_single()
if isinstance(tag, bytes):
    print(hex_readable(tag))

# # 2. Inventory - Multi
# count: int = 100
# try:
#     tags: Iterator[bytes] = reader.inventory_multiple_start(count)
#     for tag in tags:
#         print(hex_readable(tag))
# except KeyboardInterrupt:
#     reader.inventory_multiple_stop()

# # 3. 0xB7 Power
# response: Response = reader.set_power(21) # Must call save_config() for stored config in the module
# power: int = reader.get_power()
# print(f"Power: {power}")

# # 4. 0x11 Set baud rate
# NEW_BAUD_RATE: int = 115200
# reader.set_baud_rate(NEW_BAUD_RATE)
# reader.close()
# reader = Reader(SERIAL_PORT, NEW_BAUD_RATE)
# response_save_config: Response = reader.save_config(violate=False)
# print(response_save_config)

# 5. 0x0C Set Select (for read & write tag memory)
# Example: Select EPC: 11 22 33 44 55 66 77 88 99 00 AA BB
# mask: bytes = bytearray([0x11, 0x22, 0x33, 0x44, 0x55, 0x66, 0x77, 0x88, 0x99, 0x00, 0xAA, 0xBB])
# select_parameter = SelectParameter(
#     memory_bank=1,    # EPC
#     mask=mask,        # EPC value
#     start_address=32, # Start mask address (bit): 32 (or word 2)
# )
# response_set_select: Response = reader.set_select(parameter=select_parameter)
# # print(response_set_select)
#
# # 6. 0x0B Get Select
# response_get_select: SelectParameter = reader.get_select()
# print(response_get_select)
#
# # 7. 0x39 Read Memory (should run 0x0C first to select specific tag)
# for _ in range(20):
#     try:
#         response_read_memory: ReadMemoryResponse = reader.read_tag_memory(
#             memory_bank=2,   # TID
#             start_address=0, # Start TID address (word): 0
#             length=3,        # Read 3 word
#         )
#         print(response_read_memory)
#         break
#     except RuntimeError as e:
#         print(f"Error: {e} Retrying...")
#     sleep(0.1)
#
# # 8. 0x49 Write Memory (should run 0x0C first to select specific tag)
# # Example: Memory bank: EPC
# # From: 11 22 33 44 55 66 77 88 99 00 AA BB
# # Become: "FF EE DD CC" 55 66 77 88 99 00 AA BB
# response_write_memory: WriteMemoryResponse = reader.write_tag_memory(
#             memory_bank=1,   # EPC
#             start_address=2, # Start EPC address (word): 2
#             data=bytearray([0xFF, 0xEE, 0xDD, 0xCC]),
#         )
# print(response_write_memory)


reader.close()
